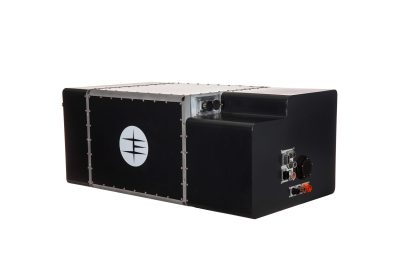

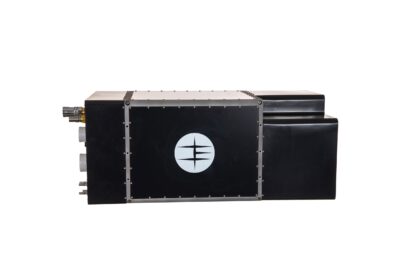

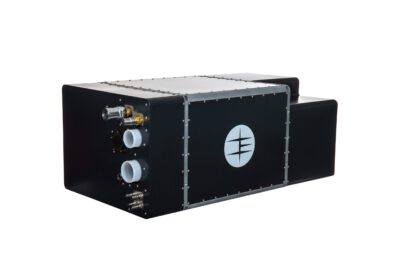

IE-DRIVE HD100

IE-DRIVE™ HD100 has been developed by Intelligent Energy (IE) as a complete fuel cell system to provide up to 100kW of continuous power.

The fuel cell system is compact and simple to integrate. The main fuel cell module contains the fuel cell stack and most of the balance of plant, with a series of connections designed that follow the StaSHH standard. IE also supply the heat exchanger and exhaust system to reduce the time and effort required to install our fuel cells systems.

IE-DRIVE HD100 has been designed to be certified for road use, ideal for integration into buses or trucks, as well as other motive applications such as large material handling (MHE), off-highway vehicles, construction, rail and marine.

The HD100 can also be used in stationary or mobile power applications, such as hybrid generators, back-up power and large-scale (multi-MW) power generation from hydrogen.

Applications

Bus
Truck
Stationary Power
Construction / Off-highway

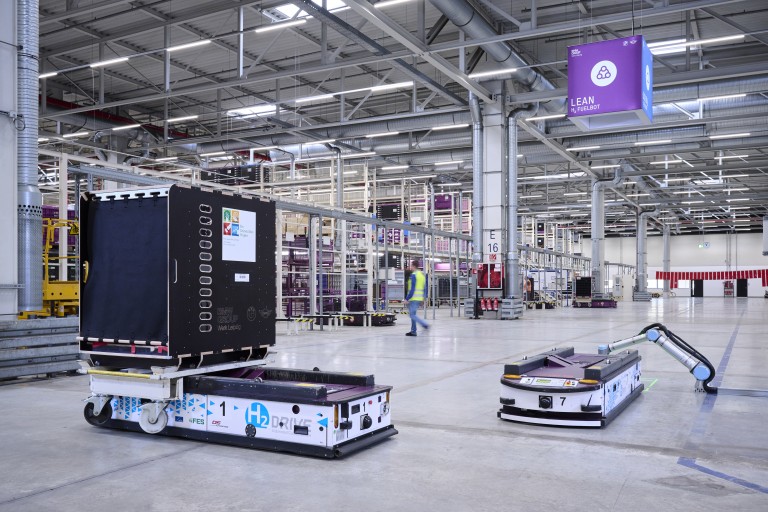

Material handling
Rail
Marine

Downloads

IE-DRIVE HD100 Datasheet

Summary Product Information

System architecture	Fuel cell system: Fuel cell module package, includes fuel cell stack, low pressure hydrogen management, air compressor module, internal water module and control system. Heat exchanger, exhaust & intake filter packaged separately Fuel cell stack: IE patented evaporatively-cooled fuel cell stack design – metallic pressed plate, bi-polar design (no separate cooling plates)
System electrical output	Through life power 100kW Maximum voltage 385V
Physical excluding condenser	Mass 250kg Fuel cell module dimensions (L x H x W): 1260 x 520 x 700mm Volume 460 litres
Environment	Operating ambient temp. -20°C to +40°C nominal (-40°C to +65°C derated) Storage / Shipment -40°C to +85°C
Fuel	Type Gaseous hydrogen to ISO 14687:2 grade D Peak efficiency 55% Fuel flow rate at 70kW 4.6kg/h at BoL to 5.6kg/h at EoL Fuel supply pressure 6 to 10 bar gauge

* Please refer to the datasheet for the full product specification.
