IE-SOAR 2.4 fuel cells for drones

IE-SOAR 2.4 fuel cell systems replace your battery and unlock long endurance flight.

IE-SOAR 2.4 fuel cells for drones

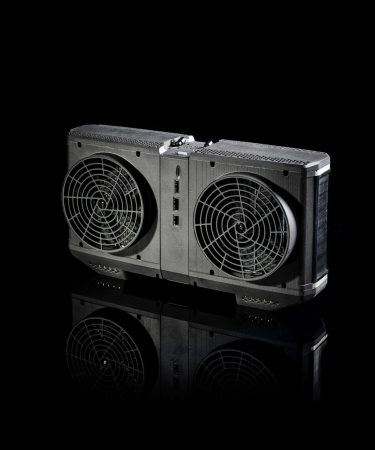

IE-SOAR™ 2.4 is our lightweight hydrogen fuel cell module for fixed wing, rotary wing and VTOL UAV applications, where battery technology restricts flight time. Our fuel cell technology runs on hydrogen and ambient air to produce clean DC power in a cost effective, robust and lightweight package. The fuel cells for drones have a higher energy to mass ratio than batteries, enabling UAVs to fly further for longer and achieve more.

Flight durations of over three times that provided by batteries have been achieved and therefore, fuel cells for drones provide a natural solution for manufacturers moving to larger UAVs and heavier payloads.

  • Enable previously impossible applications – your business is no longer constrained by flight time.
  • Unlock BVLOS operations – BVLOS makes sense with the range provided by fuel cells for drones.
  • Increase operational efficiency – spend more time in the air and achieve more when using fuel cells for drones.

Our IE-SOAR 2.4 fuel cell modules for drones deliver clean power from 800W up to 2.4kW with the capability of systems working in parallel to reach higher power outputs. This power range allows us to target a wider range of applications such as mapping and LiDAR, to linear inspection and defence.

Benefits of fuel cells for drones

  • Direct battery replacement – 12S to 16S compatible, automatically follows load demand just like a battery.
  • Designed for safety and reliability – single point failure tolerant and with built in power system redundancy.
  • Modular – combine systems in parallel for 800W to 24kW systems.

Fuel cells vs. internal combustion engines

  • Clean & zero-emission
  • Near silent operation
  • Reduced maintenance & no moving parts. No tuning.

Fuel cells vs. batteries

  • Increased flight time
  • Faster refuelling
  • Built in power system redundancy

Applications

  • Parcel delivery
  • Linear Inspection
  • Cinematography
  • Civil Inspection
  • Agriculture
  • Military Surveillance
  • LiDAR and Mapping

Summary product information

Through life power 2400W
Peak system power Up to 8000W
Output voltage (DCDC regulated) Configurable between 50V and 70V
Fuel cell power module dimensions 128 × 442 × 233mm
Fuel cell power module mass 4800g
Hydrogen regulator mass 315g
Maximum regulator (cylinder) pressure 350 bar/5000 psi
Maximum cylinder mass 10kg
Default hybrid batteries configuration 2 × 6S in series
Environmental operating conditions operating temperature -5°C to 40°C
Maximum altitude 3000m

* Please refer to the datasheet for the full product specification.
